Junttan pile driver PM 25 HLC & HHK 5 / 7 SS

$348,464

plus 22% VAT, $425,127 gross
Junttan pile driver PM 25 HLC & HHK 5 / 7 SS
Junttan pile driver PM 25 HLC & HHK 5 / 7 SS
Junttan pile driver PM 25 HLC & HHK 5 / 7 SS
Junttan pile driver PM 25 HLC & HHK 5 / 7 SS
Junttan pile driver PM 25 HLC & HHK 5 / 7 SS
Junttan pile driver PM 25 HLC & HHK 5 / 7 SS
Junttan pile driver PM 25 HLC & HHK 5 / 7 SS
Junttan pile driver PM 25 HLC & HHK 5 / 7 SS
Junttan pile driver PM 25 HLC & HHK 5 / 7 SS
Junttan pile driver PM 25 HLC & HHK 5 / 7 SS
Junttan pile driver PM 25 HLC & HHK 5 / 7 SS
Junttan pile driver PM 25 HLC & HHK 5 / 7 SS
Junttan pile driver PM 25 HLC & HHK 5 / 7 SS
Junttan pile driver PM 25 HLC & HHK 5 / 7 SS
Junttan pile driver PM 25 HLC & HHK 5 / 7 SS
Junttan pile driver PM 25 HLC & HHK 5 / 7 SS
Junttan pile driver PM 25 HLC & HHK 5 / 7 SS
Junttan pile driver PM 25 HLC & HHK 5 / 7 SS
Junttan pile driver PM 25 HLC & HHK 5 / 7 SS
Junttan pile driver PM 25 HLC & HHK 5 / 7 SS
Location FIN70100 Kuopio, Finland
VAT taxable
Condition Used
Advertiser status Commercial
Year of manufacture 2008
Operating hours 10,000 h
Advert number 6139440
Machine status Active

Further Descriptions

Cylinder count: 6; Engine model: QSC 8.3; Engine type: in-line; Originally painted; Tool box; Vin: S/N 1477 & 21040

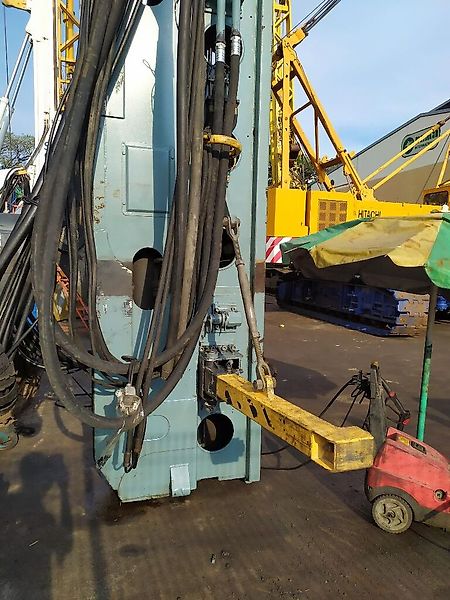

NOTE; The hammer is model HHK 5/7 SS = long 1.5 meter stroke, suitable well f.e. steel tubes
The rig has hydraulic back support legs.

Technical Data

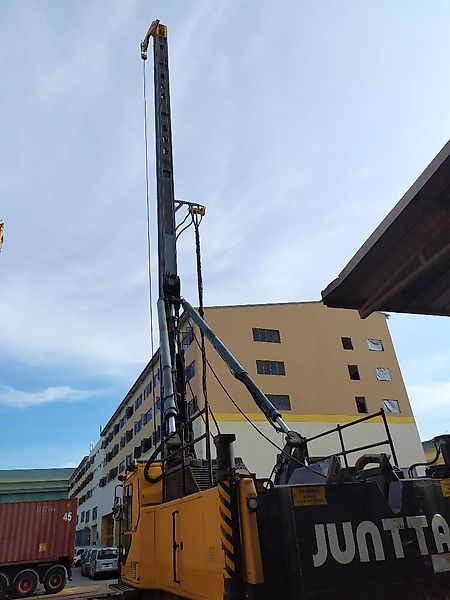

Junttan PM25HLC is a medium weight piling rig designed for driving steel and concrete piles.
Accessories
Type JH57138
Crawler length 5 760 mm 226.8 in
Crawler type D57
Width (900 shoes) Min: 3 200 mm 126 in
Max: 4 700 mm 185 in
Track shoe options Width: 800/900/1 000 mm 31½/35½/39½ in
Surface: 3-edge / flat edges / flat
Edge type: normal / chamfer / bended
Undercarriage
Type Telescopic PM25HLC
Movements Telescope 4 000 mm 158 in
Foot (up/down) 1 000/500 mm 40/20 in
Horizontal 1 500 mm 59 in
Inclinations According separate capacity tables

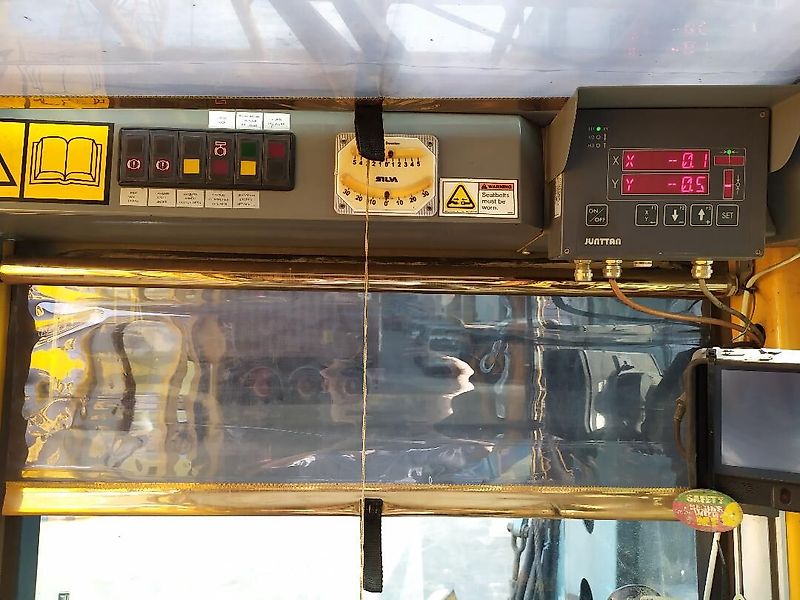

Electronic inclinometer included

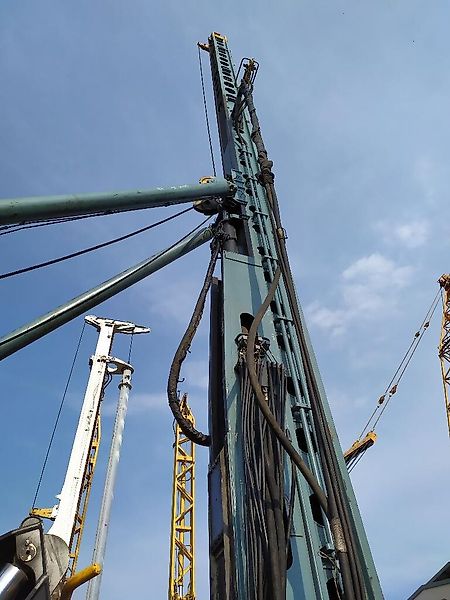

Leader
Type Junttan PM25HLC

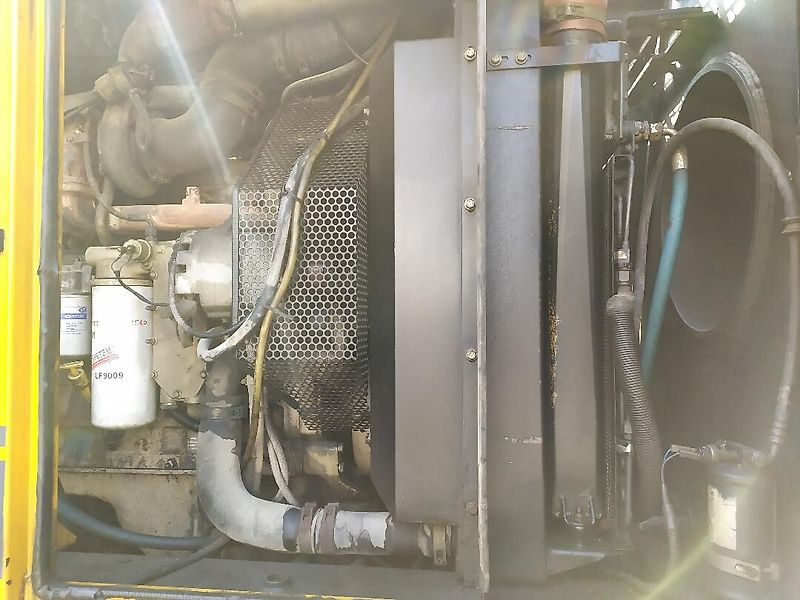

Engine Type: Cummins QSC8.3
Power: 227 kW 304 hp
Fuel tank: 420 liters 110 gal

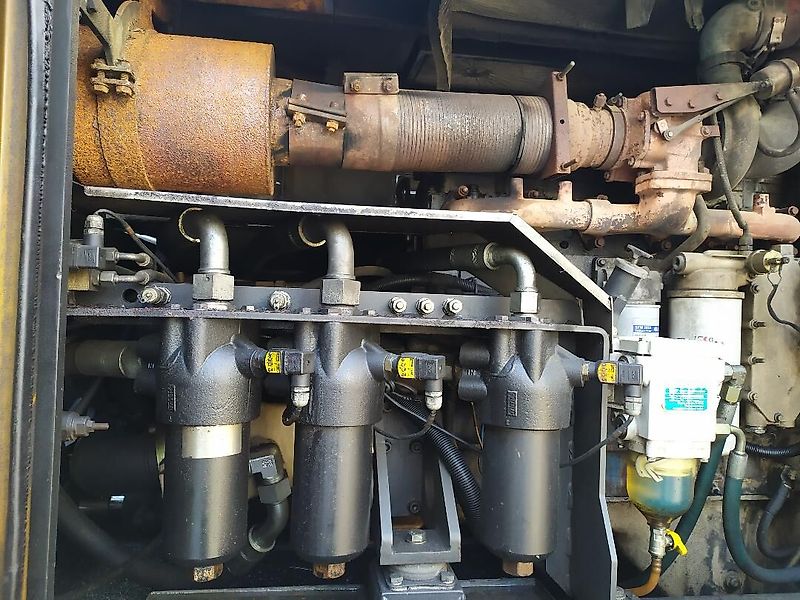

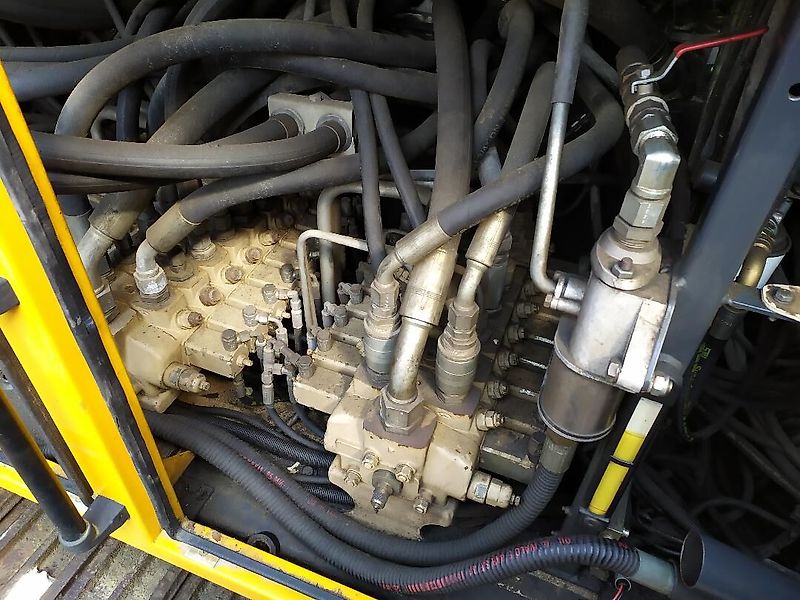

Hydraulic system Max flow: 2x214 + 126 lpm/2000rpm 2x56.5 + 33.3 gpm/2 000rpm
Max pressure: 320 bar 4 640 psi
Cooling system: 2xEmmegi HPA36
Oil tank: 670 liters 177 gal
Slew drive Single drive, double row slewing ring
Counterweight Extendable: 6 000 + 2 000 kg 13 230 + 4 400 lb
Uppercarriage
Nominal operational weight 74 000 kg 163 100 lb
Leader capasity 18 000 kg 39 700 lb
Winch capasity Pile: 10 000 kg 22 000 lb
Hammer: 16 500 kg 36 376 lb
