LIEBHERR THP 140 / 47 M5 ST

$530,135

plus 19% VAT, $630,861 gross
Top Advert

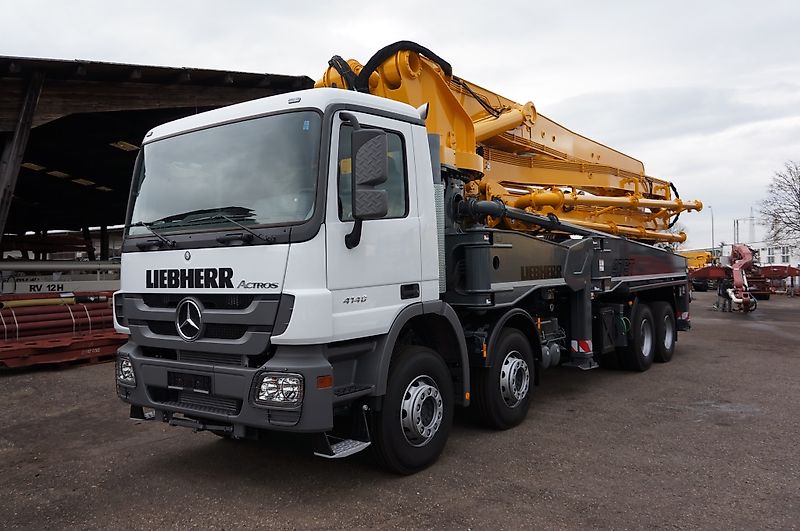

LIEBHERR THP 140 / 47 M5 ST
LIEBHERR THP 140 / 47 M5 ST
LIEBHERR THP 140 / 47 M5 ST
LIEBHERR THP 140 / 47 M5 ST
Location 5415 Nussbaumen, Switzerland
Delivery available
Financing available
VAT taxable
Condition New
Advertiser status Commercial
Year of manufacture 2016
Emission class Euro2
Colour Orange
Driving cab Local traffic
Advert number 4090162
Technical condition SEHR GUT
External condition SEHR GUT
Machine status Active

Further Descriptions

Subject to prior sale!
TECHNICAL SPECIFICATIONS

1. BASIC UNIT

1.1. pumping unit THP 140H

max. concrete output
rod side 138 m³ / h
piston side 96 m³ / h

max. pressure
rod side 80 bar
piston side 119 bar



pump cycles
rod side 28 / min
piston side 19 / min

conveying cylinders (Dinside x stroke) 230 x 2000

stroke volume/ double stroke 166 l

max. hydraulic pressure 320 bar

hydraulic drive cylinders (Dpiston/Drod x stroke) 140/80 x 2000

oil tank capacity 600 l

hopper capacity 600 l


1.2. Distributor boom 47 M5

Horizontal reach 42.0 m

Vertical reach 46.7 m
Unfolding height 9.1 m

concrete pipeline diameter 125 mm

length of endhose 4.0 m

Slewing range 365°

1st element rotation 96°

2nd element rotation 180°

3rd element rotation 180°


4th element rotation 180°


5th element rotation 270°


1.3. support ST

front outrigger setup 9.96 m

back outrigger setup 9.06 m




1.4. Standard equipment:

stationary operation panel
agitator
accessory box
support for hammer and trowel on the hopper
cleaning cover DN 150 and 2 sponge rubber balls
tool box with tool kit
4 support plates with bracket
water pump 20 bar with water hose and nozzle
water tank volume 600 l
prop. radio und cable remote control
c-port for filling of water tank
spot light for lighting the hopper
automatically central lubrication for s-valve and agitator
safety control for agitator cut-off
hopper cover, hinged
vibrator on grating
emergency stops actuation
horn at rear boom support
horn with mushroom button at the hopper
sidewise underride protection according country specification
marker lamps according country specification
emergency packet (electrical parts) according list
2 sets of operation manuals and spare parts lists
Diagnosis-system for easy failure search and elimination
Additional hydraulic oil cooler electrical
aluminium tray over the conveying cylinders
standard pipe system in ST-52
central piston lubrication
chemical release agent system nozzle
90’ elbow with cleaning opening


1.5. technical documents

2 sets spare parts list in german/english/french
2 sets operation manual list in english
components supplier documentation in english

The technical documentation you will also receive 1 fold on CD or USB stick.

2. painting

One colour paint in Liebherr export painting




3. Pump mounted on:

MERCEDES-BENZ truck chassis, type Actros 4140 B, 8x4,
motor V6, LA, 394 hp, Euro 2, gearbox G 240-16/11.7-0.69,
tyres 315/80R22.5, painted in MB 9147 arktikweiss
