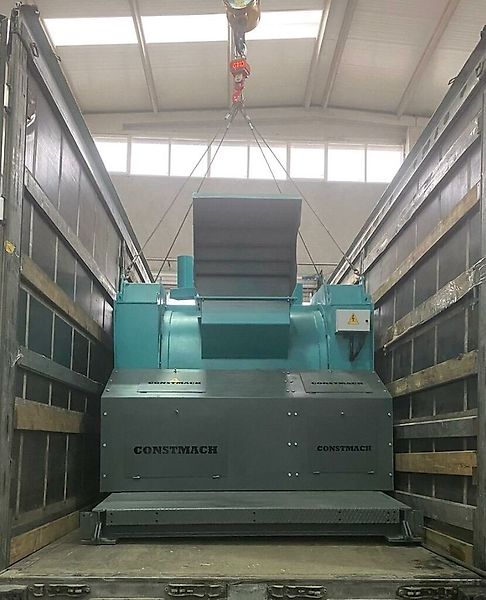

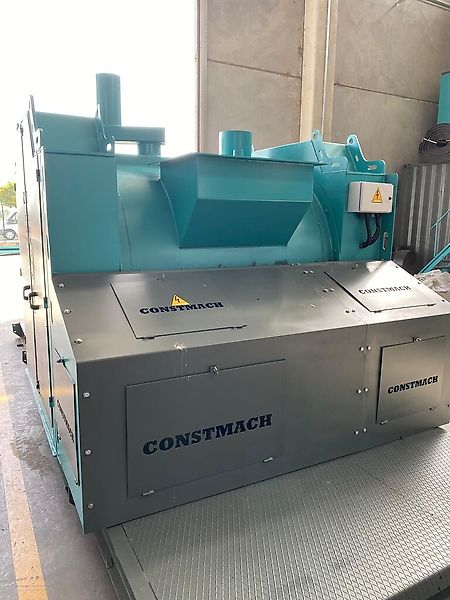

Constmach concrete mixer SINGLE SHAFT CONCRETE MIXERS, 2 YEARS WARRANTY
Price on application
|Location||06378 ANKARA, Turkey|
|Year of manufacture||2021|
|Internal reference number||JK22866|
Originally painted, Originally varnished
CONSTMACH is the leader concrete batching plant, crusher and concrete block machine manufacturer of Turkey since its foundation, 2002. Cement silos, sand screening and washing plants, mobile crushers are other product types which are manufactured by CONSTMACH.
Our products are exported to over fifty countries on five continents. USA, France, Spain, Canada, Mexico, Holland, Switzerland, Poland, Ukraine, Bulgaria, North Macedonia, Slovenia, Slovakia, Serbia, Sweden, Hungary, Romania, Latvia, Egypt, Morocco, are some of the countries where our plants are preferred by our clients.
All of our products are CE certificated and covered with 2 years’ warranty
Single Shaft MixersTechnical specifications:
Dry Filling Capacity: 1.500 lt
Compacted Concrete Capacity: 1.000 lt
Mixer Motors: 37 kW, 1450 rpm (EMTAŞ or equivalent Brand – Turkey), Efficiency class: IE3
Gearbox: Heavy duty type, (DİŞSAN or equivalent Brand – Turkey)
Bottom and Side Liner Plates and Mixing arms in Anti-Wear HARDOX 450 sheet (SSAB – SWEDEN) or XAR 500 (GERMANY), thickness 15 mm, minimum hardness 450 HBW;
Mixing and scraping blades in NI-HARD Cast Iron, hardness: 700 HBW
Hydraulic Power Pack with Manual Pump for the Emergency Opening of the Discharge Door is present.
All moving parts of the gearboxes and bearings are permanently lubricated by oil bath;

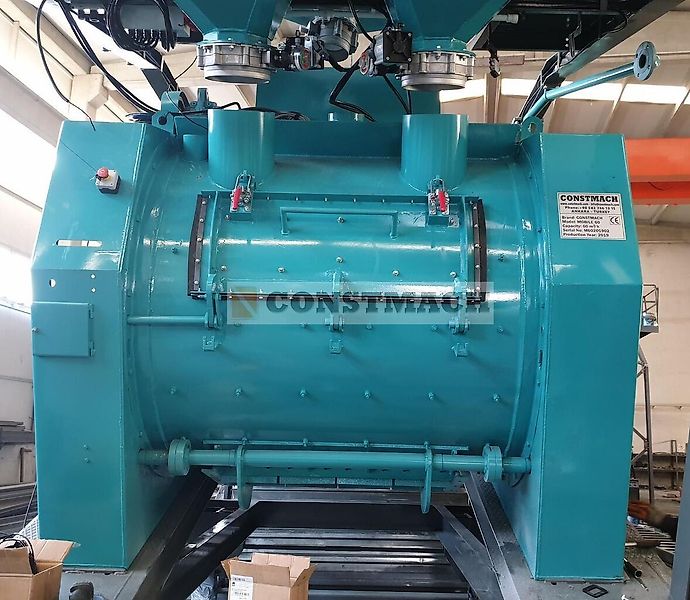

High Top Cover (500 mm) with one inspection hatch is present.

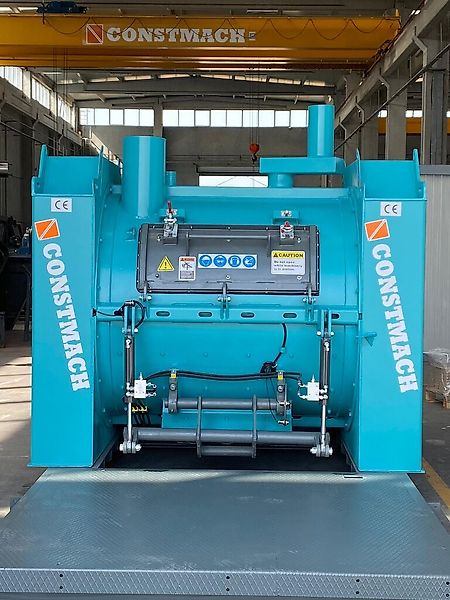

Hydraulically operated Standard Discharge Door, with three limit switches (Open, Half-Open, Close).
The closing is driven by a Pressure Gauge on the Hydraulic Power Pack;

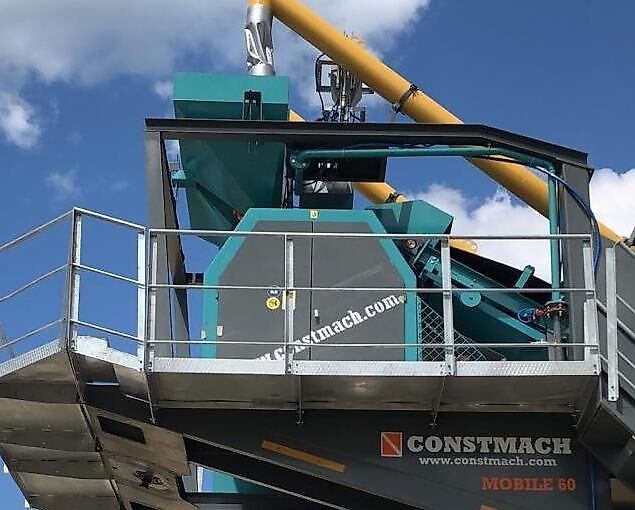

Modular Inspection Platform with access staircase and handrails
Mixing Motors with insulating materials class H, Protection Class: IP55.
Hydraulic Power Pack Motor: Insulating materials class H, Protection Class IP55, Tropicalized.
Motor of Hydraulic System: 2.2 kW
Automatic lubrication system (LINCOLN or equivalent – GERMANY) is present.
Bearings: FAG or SKF Brand - GERMANY
Inner surface of discharging bucket is coated anti-wearing HARDOX 450 – 12 mm sheet metal.
FREE OF CHARGE ASSEMBLY & TRAINING IS INCLUDED IN THE PRICE.
Please contact us for more information.
